Kärcher Puzzi 8/1 C


	HOME & GARDEN PROFESSIONAL

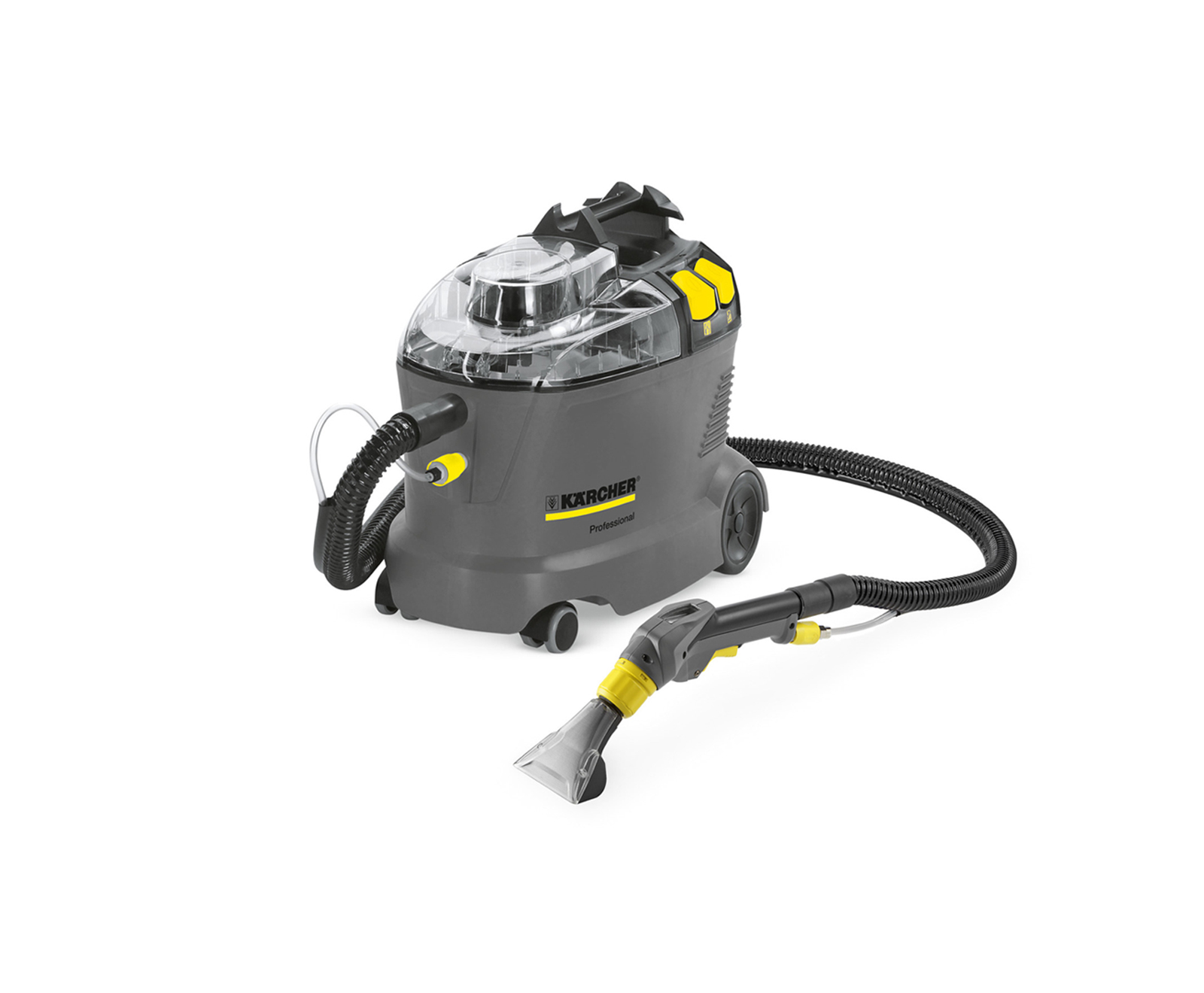

	Puzzi 8/1 C The Puzzi 8/1 C is a powerful entry-level spray extraction machine. The spray extraction machine can be used for upholstery cleaning or for removing stains on carpets. Because an extremely small amount of residual moisture remains after cleaning, cleaned carpets and upholstery can be quickly used again. Equipped as standard with a spray vacuum hose and ergonomic hand nozzle.

1 / 8

2 / 8

3 / 8

4 / 8

5 / 8

6 / 8

7 / 8

8 / 8

❮ ❯

	DESCRIPTION FEATURES AND BENEFITS SPECIFICATIONS DOWNLOADS VIDEOS APPLICATION AREAS

	DESCRIPTION

	Powerful and compact spray extraction machine for cleaning small carpets. It offers the best return suction results of all comparable competitor machines. The Puzzi 8/1 C allows textile surfaces to be used again in no time. The power cord can be positioned on the foldout cable hook. Integrated floor nozzle holder on the machine.

FEATURES AND BENEFITS

Low weight

▪	At 9.8 kg, the Puzzi 8/1 C is easy to carry and 35% lighter than the competition.
▪	Ideal for intermediate cleaning, thanks to rapid drying. Easily transported, even over obstacles and stairs.

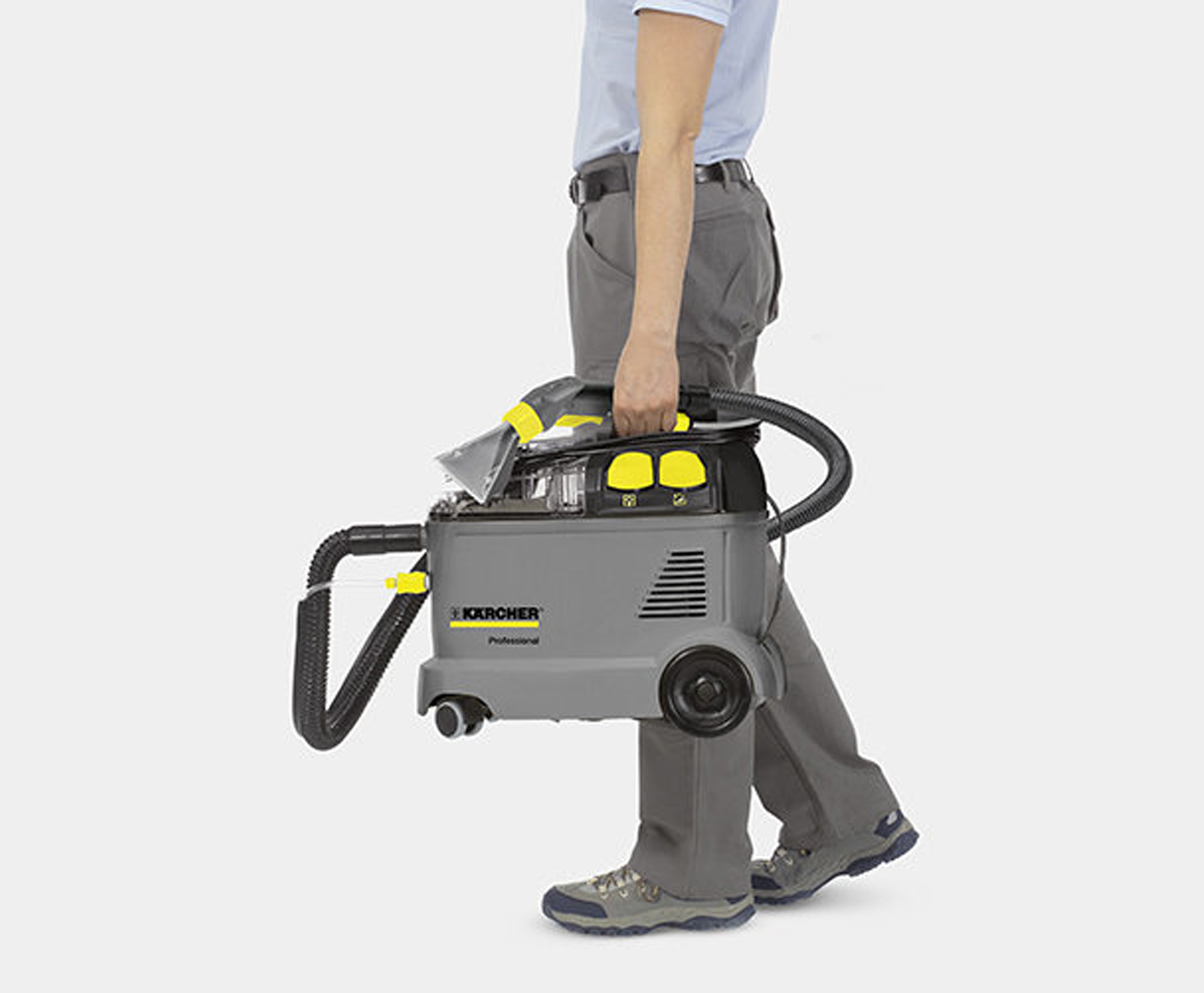

▪	Integrated carrying handle for transport with one hand.

Compact design

▪	The Puzzi 8/1 C also shows its strengths when cleaning upholstery and vehicle interiors.
▪	Compact, space-saving design.

Convenient handling and good accessibility

▪	Easily removable dirty water tank, easy disposal of dirty water and refilling of the fresh water tank.

User-friendly operation

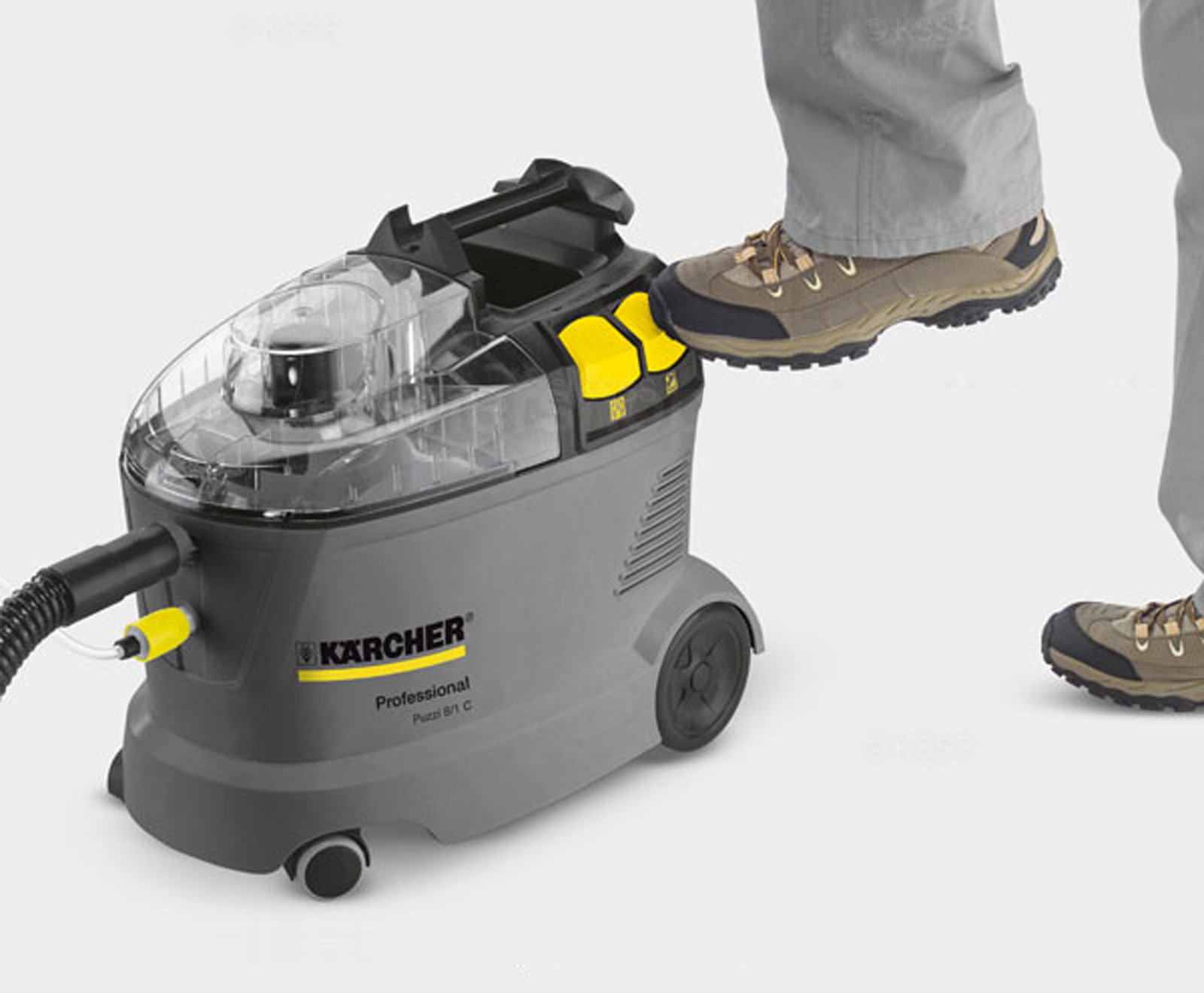

▪	A large foot switch for ergonomic operation makes it easier to concentrate on the cleaning task.

SPECIFICATIONS

Technical data

Equipment

Max. area performance (m²/h)

12 - 18

Air flow rate (l/s)

Vacuum (mbar/kPa)

230 / 23

Spray rate (l/min)

Spray pressure (bar)

Fresh/dirty water tank (l)

8 / 7

Turbine power (W)

1200

Pump power (W)

Voltage (V)

220 - 240

Frequency (Hz)

50 - 60

Weight without accessories (kg)

9.8

Ship weight incl. packaging (kg)

13.4

Dimensions (L × W × H) (mm)

530 x 330 x 440

▪	Spray hose with integrated water feed, 2.5 m

▪	Integral accessory holder for manual nozzle

▪	Power cord, 7.5 m

▪	Upholstery nozzle

▪	Cable hook

▪	Handle with trigger

DOWNLOADS

Product information

Operating Instructions

Quickstart instructions

Safety instructions
