HD 6/15-4 Classic

Single-phase, compact, strong: the service-friendly "HD 6/15-4 Classic" high-pressure cleaner with a 600 l/h water flow, powerful crankshaft pump, ceramic piston and the latest sealing technology.





1 / 8

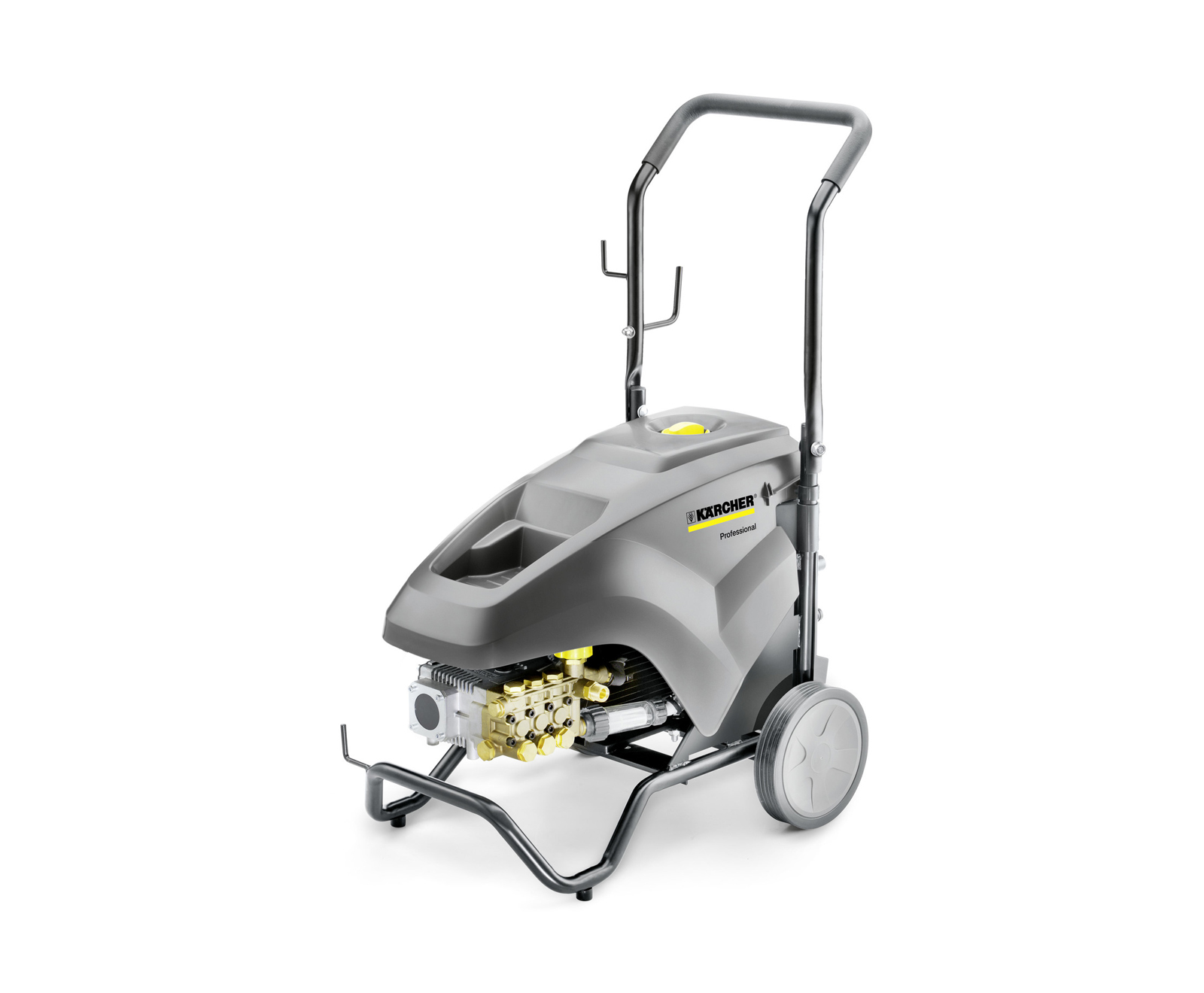

HD 6/15-4 Classic (part number: 1.367-306.0)
2 / 8

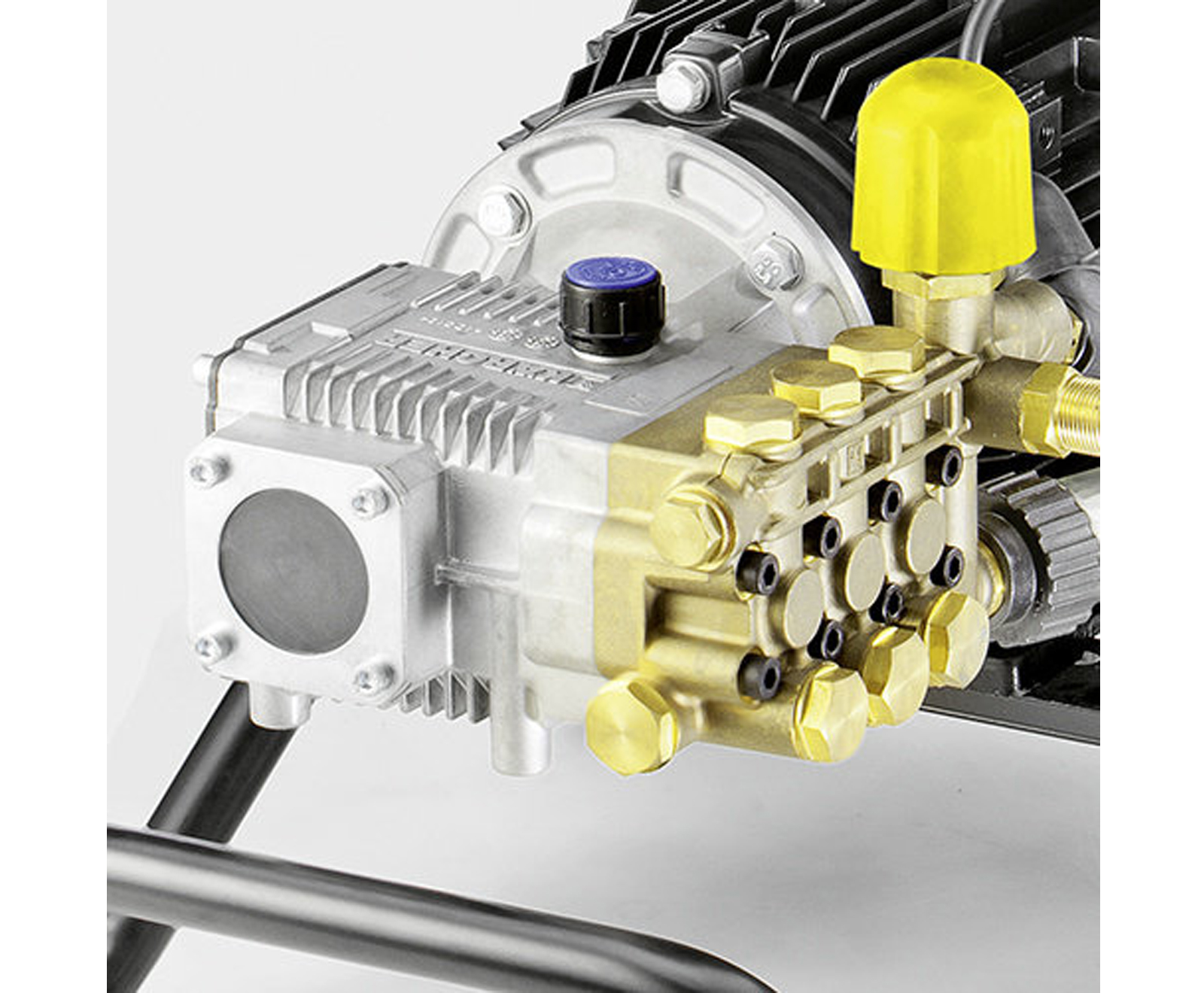

Large crankshafts and connecting rods
3 / 8

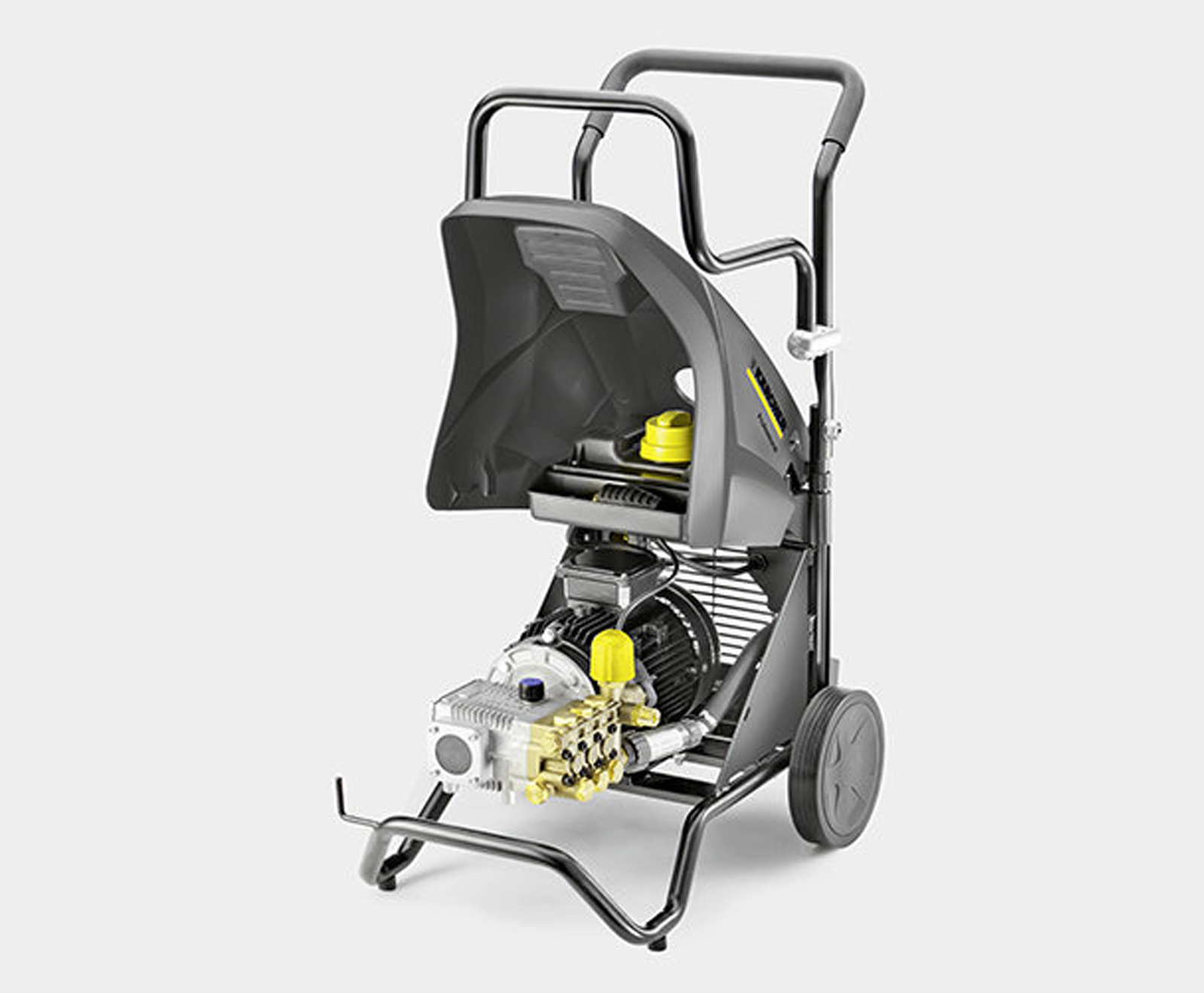

Wide-opening machine cover
4 / 8

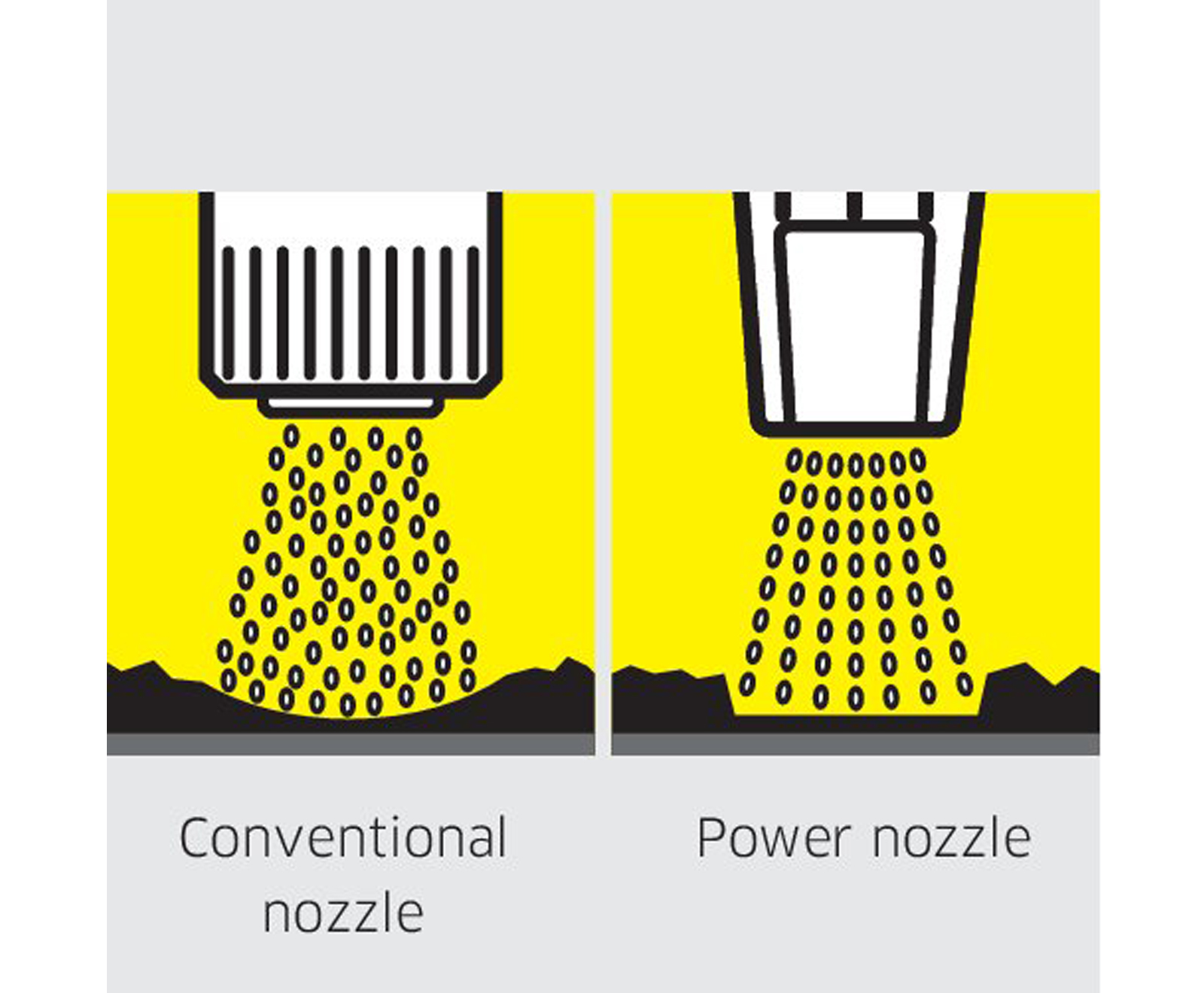

Power flat jet nozzle
5 / 8

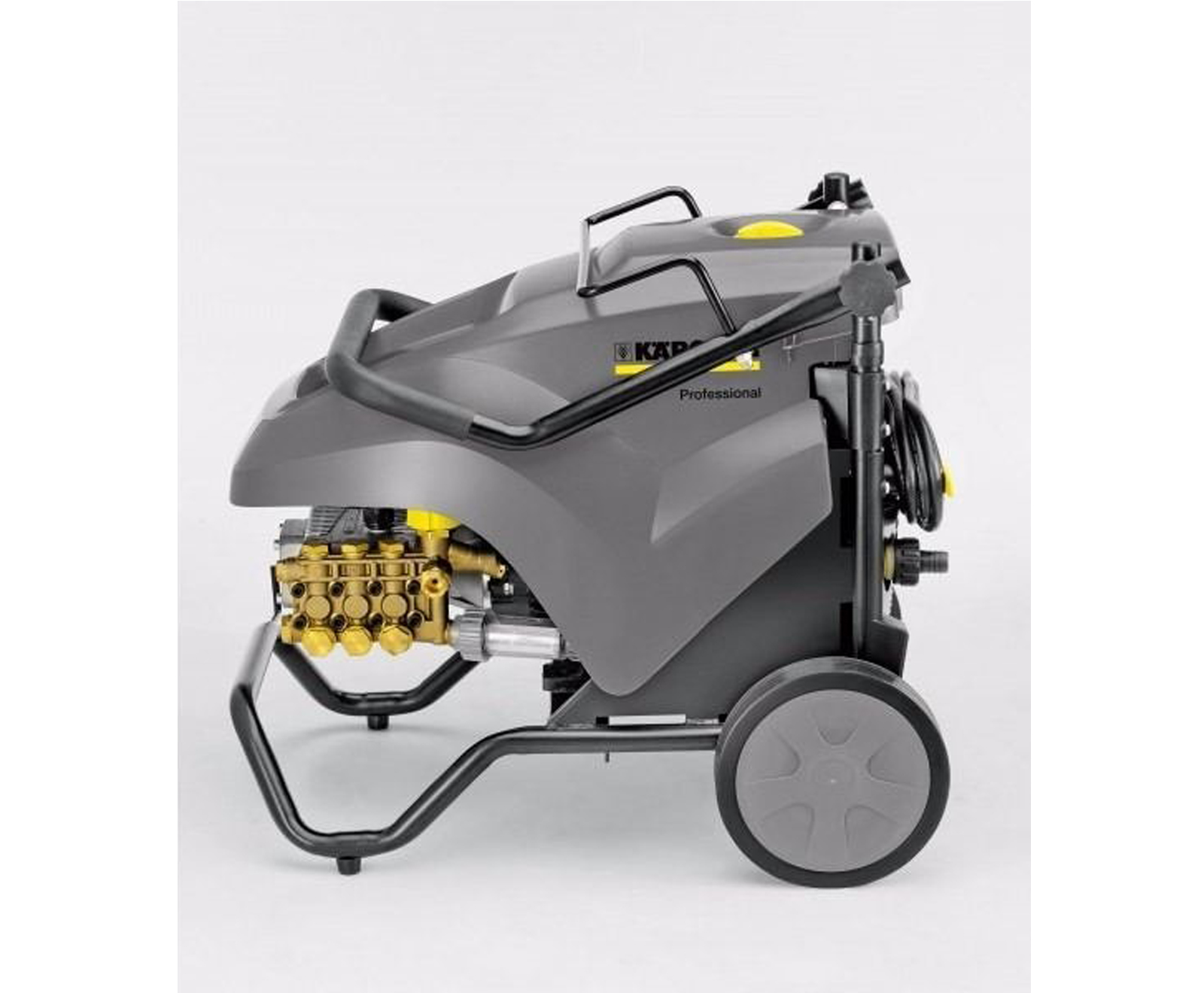

Foldable push handle
6 / 8
Rotating cable hooks
7 / 8

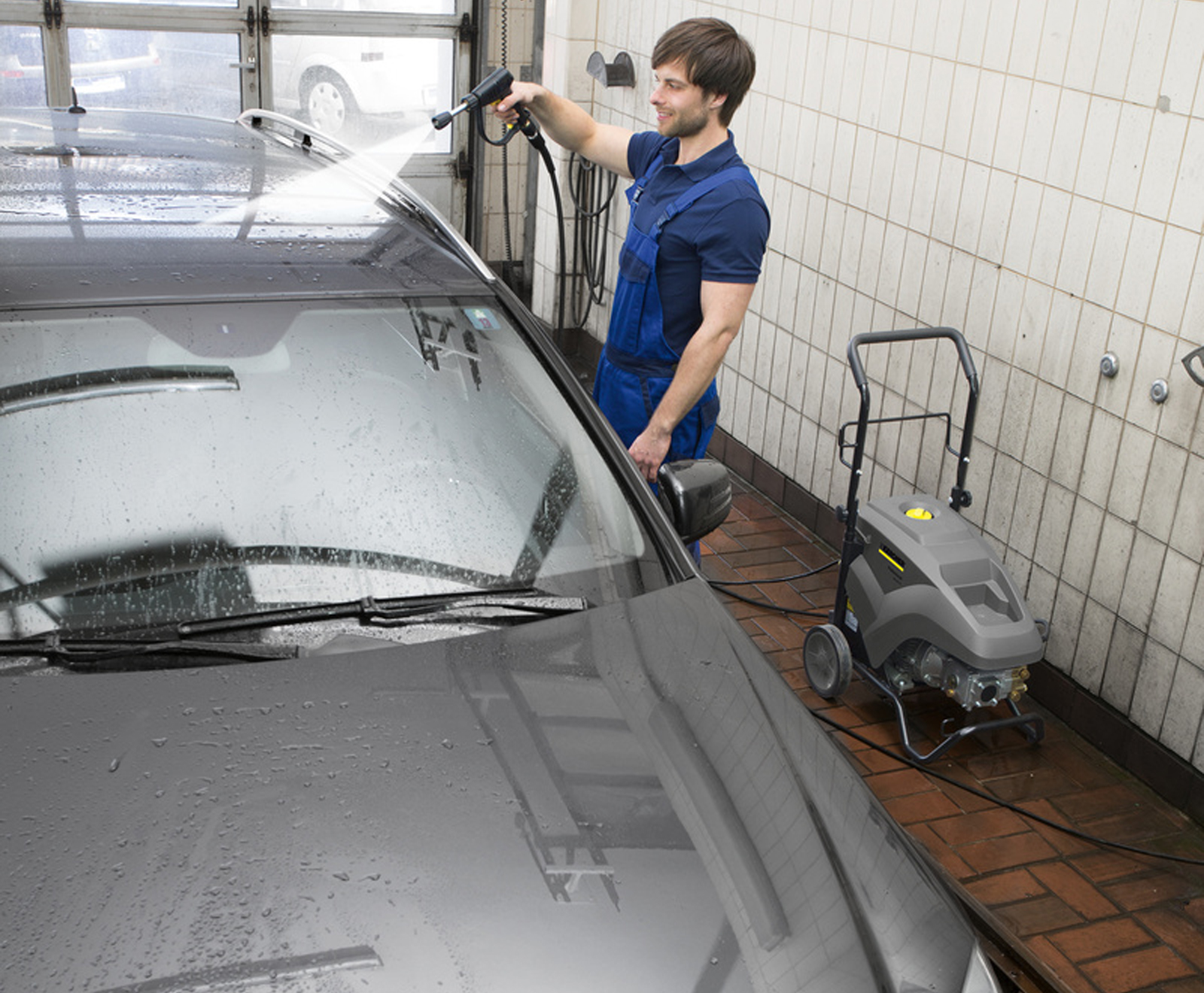

For cleaning cars
8 / 8

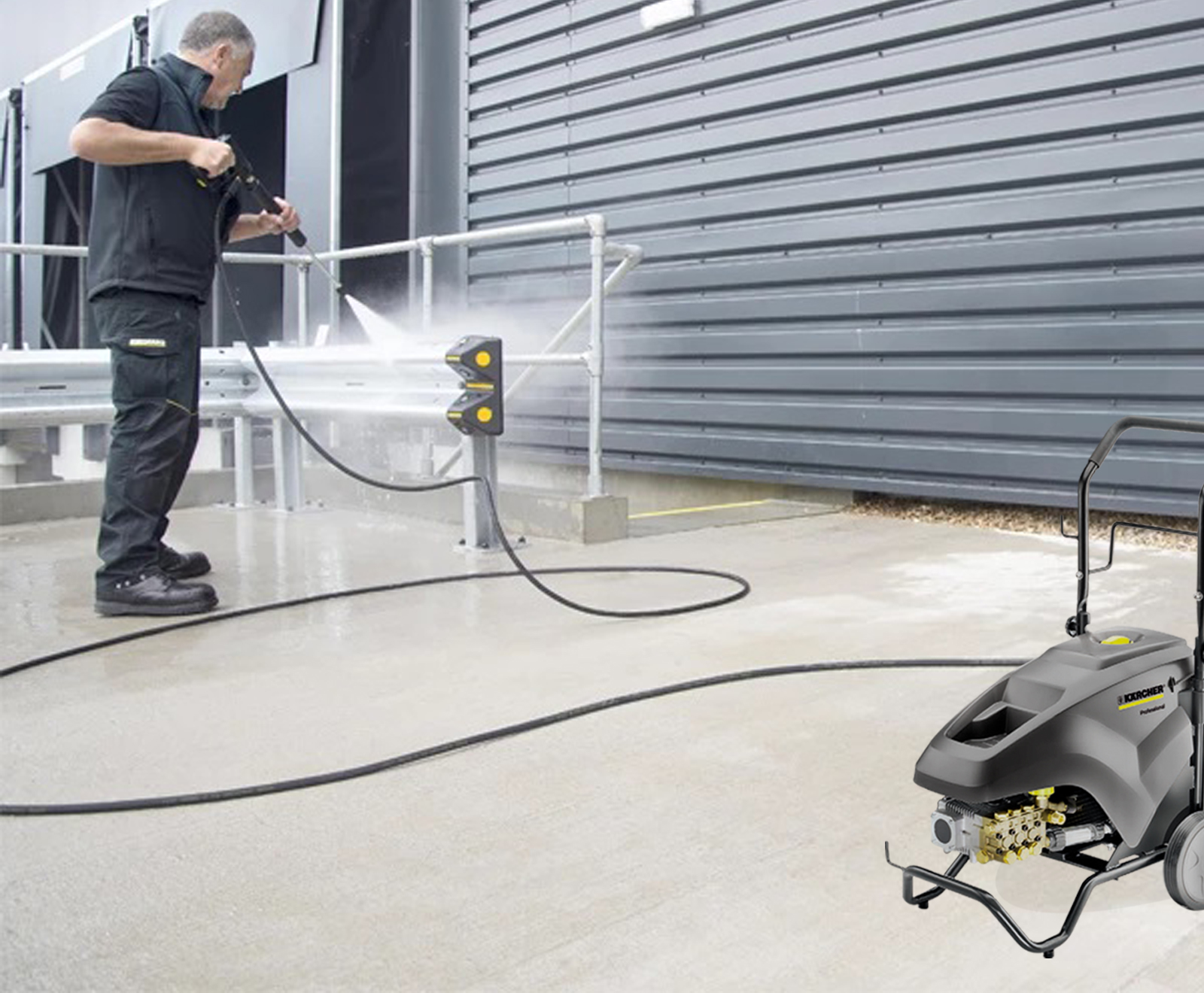

For cleaning outside areas
❮ ❯

HD 6/15-4 Classic (part number: 1.367-306.0)

Large crankshafts and connecting rods

Wide-opening machine cover

Power flat jet nozzle

Foldable push handle

Rotating cable hooks

For cleaning cars

For cleaning outside areas








DESCRIPTION



Single-phase model with maximum power and a 600 l/h water flow: the user-friendly "HD 6/15-4 Classic" is synonymous with user-friendliness, compact dimensions, lightweight design and high cleaning efficiency as well as profitability. The high quality components built into our high-pressure cleaners allow for continuous use with impressive durability. The machine also scores with serviceability; all relevant parts are easily accessible. The impressive storage options offer enough space for the nozzle, lance and other accessories.



FEATURES AND BENEFITS



Durable and robust
▪
Extra large crankshafts and connecting rods with robust ball bearings.
▪
Ceramic pistons for reduced wear and tear.
▪
High performance sealing packages for longer working times.


Especially easy to maintain
▪
Wide-opening machine cover for easy access to all service and maintenance-relevant components.
▪
Large water fine filter for protecting the pump.
▪
Integrated nozzle storage.


Improved cleaning performance
▪
Patented Kärcher power flat jet nozzles: up to 40 percent more impact force than conventional nozzles.
▪
High area coverage and thorough dirt removal.


Excellent mobility
▪
Large wheels and ergonomic push handle ensure optimal turning manoeuvrability and easy handling.
▪
The foldable push handle enables space-saving storage.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
1 / 220 - 240 / 50

Flow rate (l/h)
450 - 600

Working pressure (bar/MPa)
70 - 150 / 7 - 15

Max. pressure (bar/MPa)
190 / 19

Connection load (kW)
3.4

Weight without accessories (kg)
52

Dimensions (L × W × H) (mm)
709 x 469 x 1000

▪
Spray gun, standard
▪
High-pressure hose, 10 m
▪
Spray lance, 850 mm
▪
Power nozzle
▪
Anti-twist system (AVS)
▪
Pressure cut-off
▪
Crankshaft pump with ceramic pistons



DOWNLOADS



Product information

Operating instructions

  Specification   Operating instructions



HD 6/15-4 Classic

Single-phase, compact, strong: the service-friendly "HD 6/15-4 Classic" high-pressure cleaner with a 600 l/h water flow, powerful crankshaft pump, ceramic piston and the latest sealing technology.





1 / 8
HD 6/15-4 Classic (part number: 1.367-306.0)
2 / 8
Large crankshafts and connecting rods
3 / 8
Wide-opening machine cover
4 / 8
Power flat jet nozzle
5 / 8
Foldable push handle
6 / 8
Rotating cable hooks
7 / 8
For cleaning cars
8 / 8
For cleaning outside areas
❮ ❯

HD 6/15-4 Classic (part number: 1.367-306.0)

Large crankshafts and connecting rods

Wide-opening machine cover

Power flat jet nozzle

Foldable push handle

Rotating cable hooks

For cleaning cars

For cleaning outside areas








DESCRIPTION



Single-phase model with maximum power and a 600 l/h water flow: the user-friendly "HD 6/15-4 Classic" is synonymous with user-friendliness, compact dimensions, lightweight design and high cleaning efficiency as well as profitability. The high quality components built into our high-pressure cleaners allow for continuous use with impressive durability. The machine also scores with serviceability; all relevant parts are easily accessible. The impressive storage options offer enough space for the nozzle, lance and other accessories.



FEATURES AND BENEFITS



Durable and robust
▪
Extra large crankshafts and connecting rods with robust ball bearings.
▪
Ceramic pistons for reduced wear and tear.
▪
High performance sealing packages for longer working times.


Especially easy to maintain
▪
Wide-opening machine cover for easy access to all service and maintenance-relevant components.
▪
Large water fine filter for protecting the pump.
▪
Integrated nozzle storage.


Improved cleaning performance
▪
Patented Kärcher power flat jet nozzles: up to 40 percent more impact force than conventional nozzles.
▪
High area coverage and thorough dirt removal.
▪
Separate park and transport position for the spray unit.


Excellent mobility
▪
Large wheels and ergonomic push handle ensure optimal turning manoeuvrability and easy handling.
▪
The foldable push handle enables space-saving storage.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
1 / 220 - 240 / 50

Flow rate (l/h)
450 - 600

Working pressure (bar/MPa)
70 - 150 / 7 - 15

Max. pressure (bar/MPa)
190 / 19

Connection load (kW)
3.4

Weight without accessories (kg)
52

Dimensions (L × W × H) (mm)
709 x 469 x 1000

▪
Spray gun, standard
▪
High-pressure hose, 10 m
▪
Spray lance, 850 mm
▪
Power nozzle
▪
Anti-twist system (AVS)
▪
Pressure cut-off
▪
Crankshaft pump with ceramic pistons



DOWNLOADS



Product information

Operating instructions

  Specification   Operating instructions



HD 6/15-4 Classic

Single-phase, compact, strong: the service-friendly "HD 6/15-4 Classic" high-pressure cleaner with a 600 l/h water flow, powerful crankshaft pump, ceramic piston and the latest sealing technology.





1 / 8
HD 6/15-4 Classic (part number: 1.367-306.0)
2 / 8
Large crankshafts and connecting rods
3 / 8
Wide-opening machine cover
4 / 8
Power flat jet nozzle
5 / 8
Foldable push handle
6 / 8
Rotating cable hooks
7 / 8
For cleaning cars
8 / 8
For cleaning outside areas
❮ ❯







DESCRIPTION



Single-phase model with maximum power and a 600 l/h water flow: the user-friendly "HD 6/15-4 Classic" is synonymous with user-friendliness, compact dimensions, lightweight design and high cleaning efficiency as well as profitability. The high quality components built into our high-pressure cleaners allow for continuous use with impressive durability. The machine also scores with serviceability; all relevant parts are easily accessible. The impressive storage options offer enough space for the nozzle, lance and other accessories.



FEATURES AND BENEFITS



Durable and robust
▪
Extra large crankshafts and connecting rods with robust ball bearings.
▪
Ceramic pistons for reduced wear and tear.
▪
High performance sealing packages for longer working times.


Especially easy to maintain
▪
Wide-opening machine cover for easy access to all service and maintenance-relevant components.
▪
Large water fine filter for protecting the pump.
▪
Integrated nozzle storage.


Improved cleaning performance
▪
Patented Kärcher power flat jet nozzles: up to 40 percent more impact force than conventional nozzles.
▪
High area coverage and thorough dirt removal.
▪
Separate park and transport position for the spray unit.


Excellent mobility
▪
Large wheels and ergonomic push handle ensure optimal turning manoeuvrability and easy handling.
▪
The foldable push handle enables space-saving storage.



SPECIFICATIONS



Technical data



Current type (Ph/V/Hz)
1 / 220 - 240 / 50


Flow rate (l/h)
450 - 600


Working pressure (bar/MPa)
70 - 150 / 7 - 15


Max. pressure (bar/MPa)
190 / 19


Connection load (kW)
3.4


Weight without accessories (kg)
52


Dimensions (L × W × H) (mm)
709 x 469 x 1000



Equipment



▪
Spray gun, standard


▪
High-pressure hose, 10 m


▪
Spray lance, 850 mm


▪
Power nozzle


▪
Anti-twist system (AVS)


▪
Pressure cut-off


▪
Crankshaft pump with ceramic pistons



DOWNLOADS



Product information

Operating instructions

  Specification   Operating instructions


VIDEOS



  • Feature Demonstration



APPLICATION AREAS



▪
Vehicle cleaning


▪
Cleaning of outside areas


▪
Workshop cleaning


▪
Service station cleaning


▪
Swimming pool cleaning
